華陽光電混合離網單相光伏逆變器ED3000-EO /ED5000-EO

      華陽光電3kw/5kw單相離網混合逆變器是一款多功能離網太陽能逆變器，在一臺機器中與MPPT太陽能充電控制器，高頻純正弦波逆變器和UPS功能模塊集成在一起，非常適合離網備用電源和自耗電應用。

整個系統還需要其他光伏組件來實現完整運行，例如PV模塊，儲能電池或公用電網。請根據您的要求向系統集成商咨詢其他可能的系統光伏組件。WiFi 1 GPRS模塊是要安裝在逆變器上的即插即用監視設備。使用此設備，用戶可以隨時隨地通過手機APP或網站監視光伏系統的狀態。

華陽光電5kw單相離網混合逆變器的特點如下：

• 適合定制各種光伏儲能一體機

• 適配所有24V / 48V電池系統

• 自動激活磷酸鐵鯉電池組,簡單快捷

• 最多可6臺并聯。(僅適用于ED5000-EO)

• 多種操作模式,離網以及UPS,內置MPPT控制器

• 智能APP,可遠程診斷電池各項數據及對其進行管理

• 純正弦波輸出3KW

• 內置MPPT

• 體積小，重量輕的高頻變頻器

• 過載，短路和深度放電保護

• WIFI / GPRS遠程監控（可選）

單相3kw/5kw離網混合逆變器規格書

Mode Specifications
INVERTER MODEL	ED3600-EO	ED5000-EO
Input Voltage Waveform	Sinusoidal (utility grid or generator)
Nominal Input Voltage	230Vac
Low Loss Voltage	185Vac (UPS); 90Vac (Appliances)
Low Loss Return Voltage	185ac+10V (UPS);90+10V (Appliances)
High Loss Voltage	264Vac (UPS); 280Vac (Appliances)
High Loss Return Voltage	264ac-10V (UPS);280-10V (Appliances)
Nominal Input Frequency	50Hz / 60Hz (Auto detection)
Low Loss Frequency	40±1 Hz
Low Loss Return Frequency	42±1 Hz
High Loss Frequency	70±1 Hz
High Loss Return Frequency	65±1 Hz
Output Short Circuit Protection	Circuit Breaker
Efficiency (Line Mode)	>95% ( Rated R load, battery full charged )
Transfer Time	10ms typical, 20ms Max@ Single <30ms @ Parallel

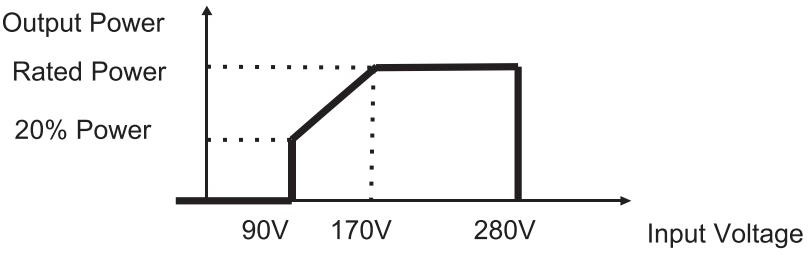

Output power derating:  The output power will be derated when AC input voltage drops to 170V.
Inverter Mode Specifications
INVERTER MODEL	ED3600-EO	ED5000-EO
Rated Output Power	3.6KVA/3.6KW	5KVA/5KW
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac±3%
Output Frequency	50Hz/60Hz
Nominal Output Current	15A	21.7A
Peak Efficiency	>93%
Overload Protection	5s@>150% load; 10s@110%~150% load
Surge Capacity	2* rated power for 0.2 seconds	2* rated power for 5 seconds
Nominal DC Input Voltage	24Vdc	48Vdc
Cold Start Voltage(Lead-Acid	24Vdc	48Vdc
Cold Start SOC(Li Mode)	Default 30%, Low DC Cut-off SOC +5%
Low DC Warning Voltage (Lead-Acid Mode)	21.6Vdc	44.0Vdc
Low DC Warning Return Voltage(Lead-Acid Mode)	24.0Vdc	46.0Vdc
Low DC Cut-off Voltage (Lead-Acid Mode)	21.0Vdc	42.0Vdc
Low DC Warning SOC (Li Mode)	Low DC Cut-off SOC +5%
Low DC Warning Return SOC (Li Mode)	Low DC Cut-off SOC +10%
Low DC Cut-off SOC(Li Mode)	Default 20%, 5%~50% settable
High DC Recovery Voltage	58Vdc (C.V. charging voltage)
High DC Cut-off Voltage	32Vdc	64Vdc
No Load Power Consumption	<50W	<60W
Charging Mode Specifications
Utility Charging Mode
INVERTER MODEL	ED3600-EO	ED5000-EO
Charging Algorithm	3-Step
Max. AC Charging Current	60Amp(@VI/P=230Vac)	80Amp(@VI/P=230Vac)
Bulk Charging Voltage  Flooded Battery  /AGM / Gel Battery	28.2Vdc	58Vdc
Floating Charging Voltage	27.8Vdc	58Vdc

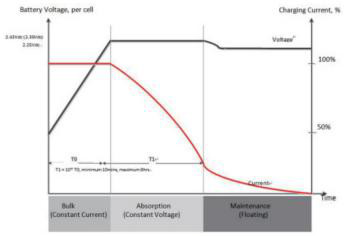

Charging Curve
MPPT Solar Charging Mode
Max. PV Array Power	4000W	5500W
Max. PV Input Current	20A	18A
Start-up Voltage	60Vdc ±10Vdc	100Vdc±10Vdc
PV Array MPPT Voltage Range	40Vdc~450Vdc	120Vdc~450Vdc
Max. PV Array Open Circuit Voltage	500Vdc
Max. PV Charging Current	100A	80A
Max. Charging Current (AC Charger Plus Solar Charger)
	100A	80A
General Specifications
Operating Temperature Range	0°C ~40 °C
Storage temperature	-15°C~ 60 °C
Humidity	5% to 95% Relative Humidity (Non-condensing)
Altitude	<2000m
Dimension(D*W*H)mm	485 x 300 x 120
Net Weight, kg	9.5
